Build pages that flow.

This guide explains how to install PageFlow, how to use it, and how to adapt it. The first part is for everyone; the Developers part is for whoever installs PageFlow in a site.

Highlights

Live demo

Try PageFlow at pageflow.pandao.eu: change the language and the theme of the interface, drop blocks, edit the texts, resize the columns, upload a picture. Your changes stay in your browser; Reset brings the demo page back. Pictures uploaded on the demo are deleted every night.

The photos of the demo, which the screenshots of this guide show, are for preview only and are not included in the package.

Requirements

Package contents

pageflow-2.0.0/
├── dist/
│   ├── pageflow.min.js       the editor, for a <script> tag (global PageFlow)
│   ├── pageflow.js           the same, not minified
│   ├── pageflow.esm.min.js   ES module: import PageFlow from '…/pageflow.esm.min.js'
│   ├── pageflow.esm.js
│   └── pageflow.css          only for pages that forbid injected styles (injectStyles: false)
├── examples/                 7 examples: open examples/index.html
├── server/php/               secure upload handler and security helpers
├── src/                      the sources (ES modules), to read or to rebuild
├── tools/                    build scripts (npm run build)
├── documentation/            this guide
├── package.json
├── README.txt
└── LICENSE.txt

Only dist/pageflow.min.js is needed in production; add server/php/ if you use the PHP upload handler.

Quick start

1. Copy the pageflow folder (at least dist/) to your site.
2. Add an element for the editor and the script:

   <div id="editor"></div>

   <script src="/pageflow/dist/pageflow.min.js"></script>
   <script>
       const editor = PageFlow.create('#editor');
   </script>

3. Get the page with editor.getHTML() and save it where you want (see In a form).

The canvas loads Bootstrap 5 from jsDelivr by default. Load the stylesheets of your site instead, so that the page looks exactly like it will online:

PageFlow.create('#editor', {
    canvasStyles: ['/css/bootstrap.min.css', '/css/theme.css'],
    html: savedHtml,          // the page to edit (or put it inside #editor)
    locale: 'en',             // en, fr, es, de, it, pt
});

As an ES module:

import PageFlow from '/pageflow/dist/pageflow.esm.min.js';
const editor = PageFlow.create('#editor', { … });

In a form

Give PageFlow the field that holds the page: it reads it at start, writes it after every change, and once more when the form is sent (the text being typed included).

<form method="post" action="/save-page">
    <div id="editor"></div>
    <textarea id="content" name="content" hidden><?= htmlspecialchars($page->content) ?></textarea>
    <button>Save</button>
</form>

<script>
    PageFlow.create('#editor', { input: '#content', mode: 'compact', height: 700 });
</script>

Without a form, save with your own button: the actions option adds buttons to the top bar.

PageFlow.create('#editor', {
    html: savedHtml,
    actions: [{
        label: 'Save', icon: 'floppy-disk', primary: true,
        onClick: async editor => {
            await fetch('/pages/42', { method: 'PUT', body: editor.getHTML() });
            editor.notify('Saved', 'success');
        },
    }],
});

The autosave option keeps a draft in the browser: after a crash or a closed tab, PageFlow offers to restore the changes. The draft is removed when the form is sent, or with editor.clearDraft().

Pictures and uploads

To send pictures from the computer, PageFlow needs an upload address. Without one, the image fields only take the address of a picture: PageFlow never stores pictures in the page as base64 unless you ask for it (inlineImages: true, for pages without any server), because they would fill your database with megabytes of text.

The included PHP handler

<?php require 'pageflow/server/php/pageflow-security.php'; ?>
<script>
    PageFlow.create('#editor', {
        uploadUrl: '/pageflow/server/php/pageflow-upload.php',
        csrfToken: '<?= pageflow_csrf_token() ?>',
    });
</script>

It accepts JPEG, PNG, GIF and WebP pictures only, checked from their content; it writes each picture again (as WebP when possible, resized to 2000 px at most), under a random name, in uploads/ at the root of the package, a folder where scripts can never run. Requests need the CSRF token of the session and must come from your site.

Your own upload address

PageFlow posts the file (multipart/form-data, field upload, plus csrf_token and the X-CSRF-Token header when csrfToken is set, plus uploadData) and expects JSON with the address of the file:

{ "url": "/media/2026/10/lake.webp" }             // success
{ "error": { "message": "This file is too large." } }   // error, shown to the user (HTTP 4xx/5xx)

An upload function, or your media library

PageFlow.create('#editor', {
    // any service: S3, Cloudinary, your API… return the address, or {url, alt}
    upload: async (file, { type }) => {
        const data = new FormData();
        data.append('file', file);
        const response = await fetch('/api/media', { method: 'POST', body: data });
        return (await response.json()).url;
    },
    // or the media library of your application: open() resolves with {url, alt} or null
    mediaLibrary: { open: ({ type }) => myLibrary.choose(type) },
});

Pictures can be uploaded from the image field, dropped from the desktop onto the page (on a picture, they replace it) or pasted (a screenshot). Deleting a block never deletes a file on the server: the same picture may be used elsewhere, or come back with Undo.

Upgrading from 1.x

Version 2 is a rewrite, and keeps what you built with version 1:

• Your pages: the HTML written by PageFlow 1 is imported as it is, and exported unchanged when nothing is edited.
• Your code: $('.pageflow').pageflow({...}) still works, with the same options (see jQuery).

The interface

• Top bar: add (+), undo and redo; the preview sizes (desktop, tablet, phone); outlines, preview, code, copy, full screen and settings.
• Left panel: Blocks (drag them, or click to add), Sections (whole ready-made parts of a page) and Layers (the outline of the page).
• Canvas: the page itself, with your site's styles. Containers, rows and columns show a dashed outline and their name (container, row, col); the preview hides them.
• Right panel: the settings of the selected block.

The interface adapts to its width: from 1500 px, both panels show; from 900 px, they share one panel with tabs (selecting a block shows its settings); on smaller screens they open as drawers. A second click on + or on the settings button hides the panel, to give the page all the room.

Adding blocks

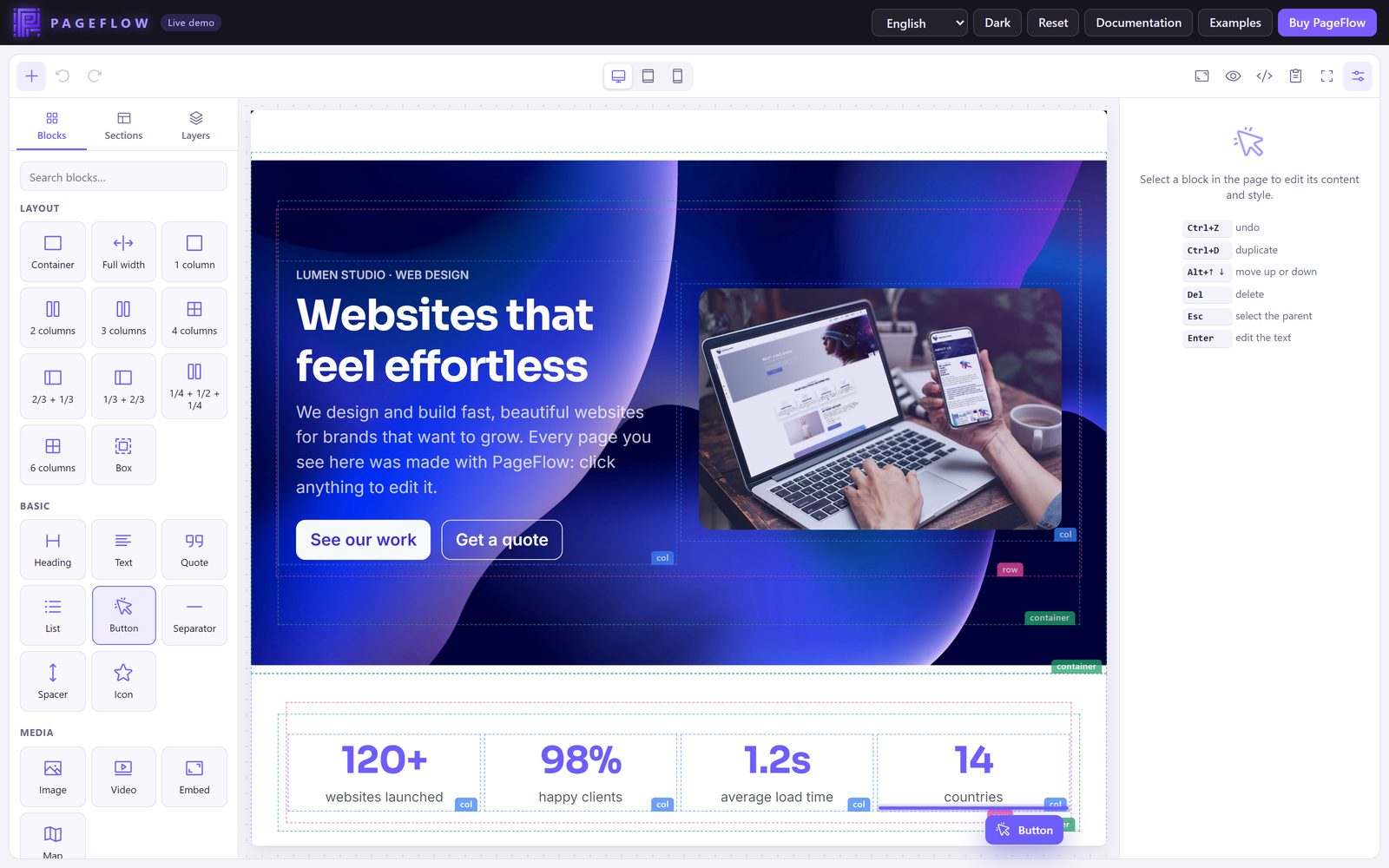

Drag a block from the left panel into the page: a violet line shows where it will go. Click a block to add it after the selected one (or inside the selected column). On a touch screen, tap it.

Layout blocks build the structure: a container (centered or full width), rows of columns (1 to 6, or two thirds and one third…), and boxes that group blocks. Columns stack on phones by themselves.

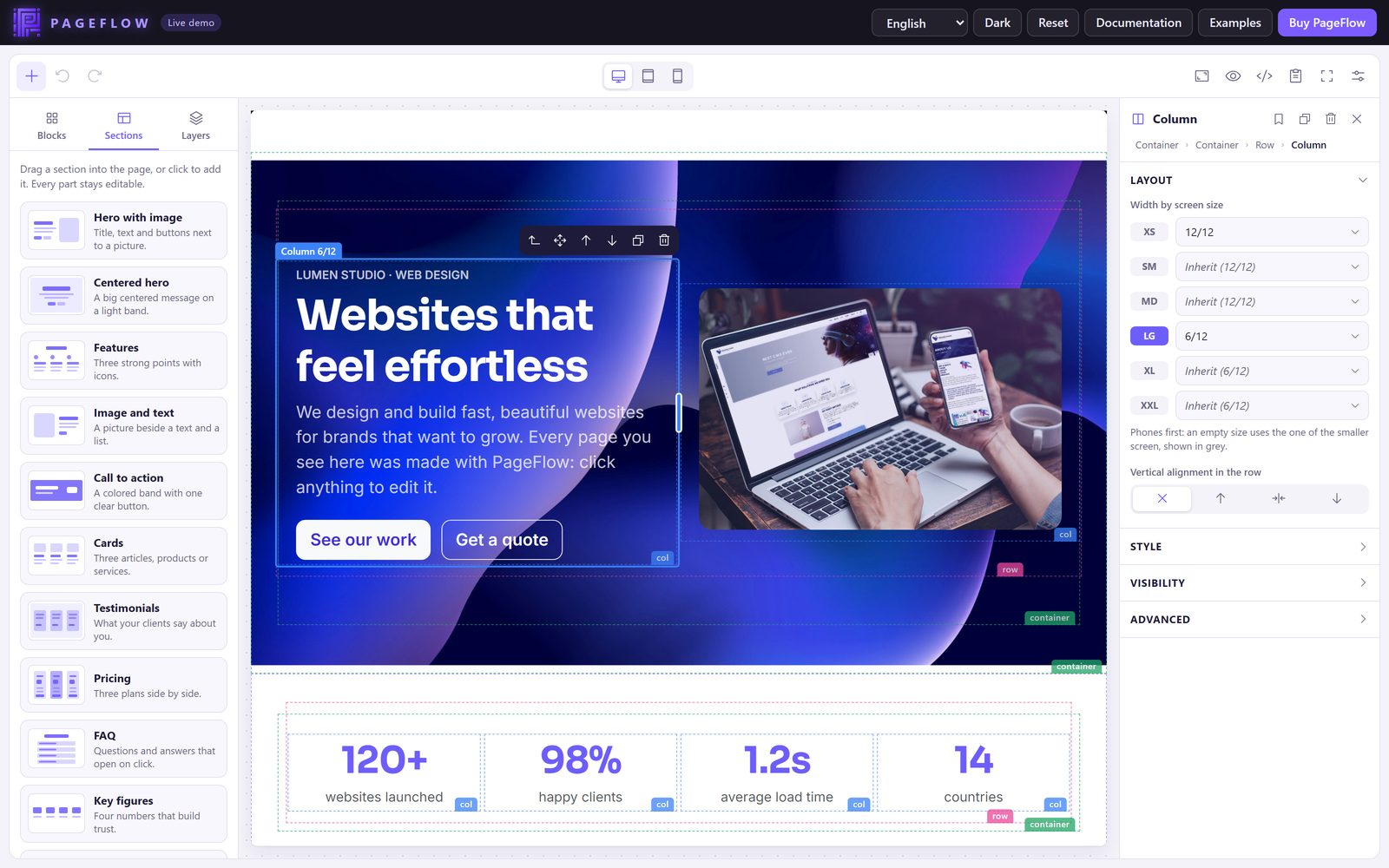

Sections are ready-made parts of a page: two heroes, features, image and text, call to action, cards, testimonials, pricing, FAQ, key figures, team, contact with a map, gallery. Every part of a section stays editable.

Files dragged from the desktop become image blocks where you drop them; a screenshot pasted with Ctrl+V too (when an upload address is set).

Selecting and moving

Click a block to select it. Its toolbar selects the parent block, moves it (drag the cross), moves it up or down, duplicates or deletes it. The path at the top of the settings (Container › Row › Column › Heading) selects any parent in one click; Esc selects the parent too.

Blocks can be copied and pasted, also into another page or another browser tab: select a block, Ctrl+C, select where to paste, Ctrl+V.

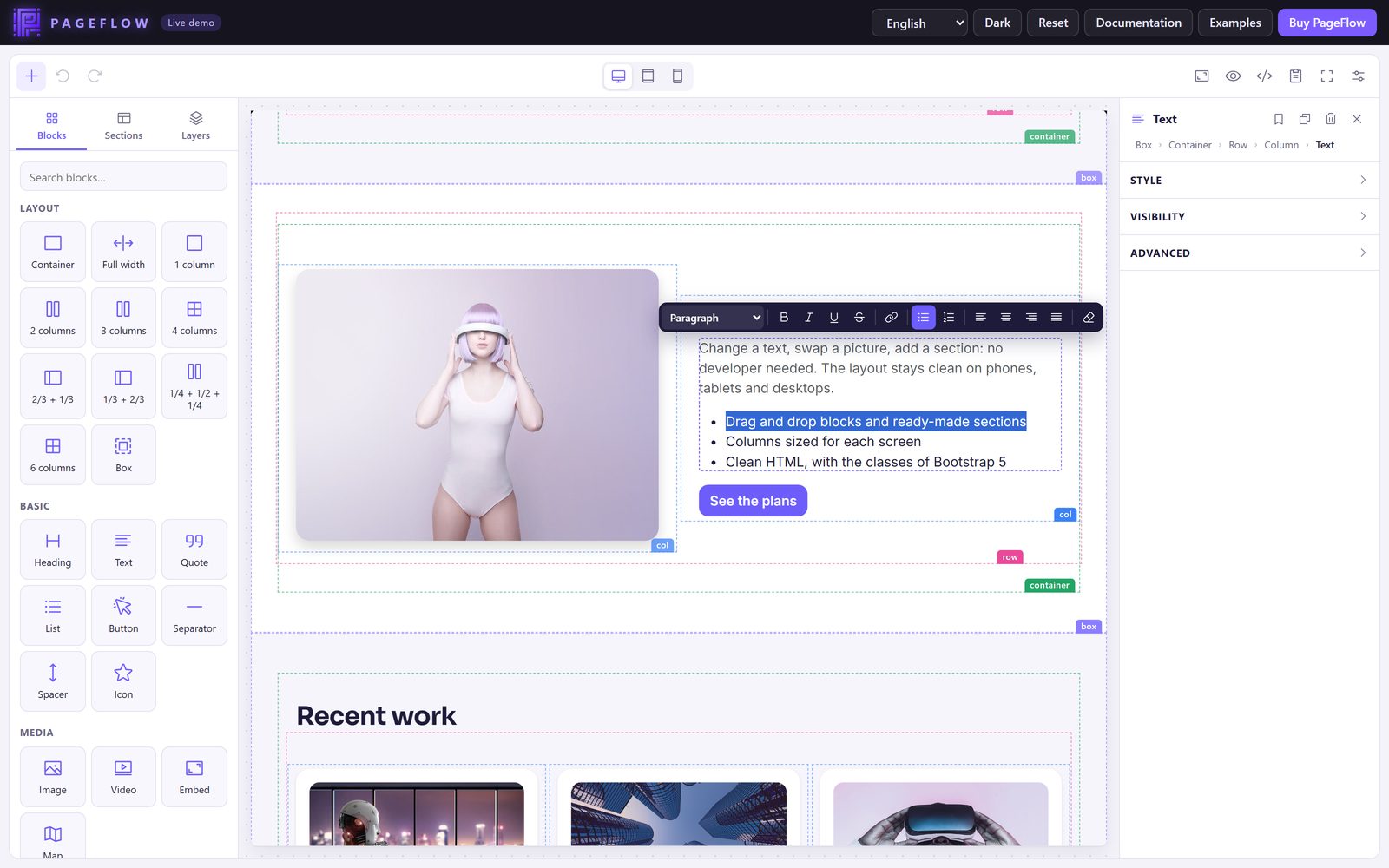

Editing text

Click a text to write in it. The text toolbar sets the style of the paragraph (paragraph, lead, small text, headings 2 to 5, quote, code), bold, italic, underline, strike, links, lists and alignment. In a table, a menu adds or removes rows and columns.

Pasting from Word, Google Docs or a web page keeps the structure (paragraphs, headings, lists, links, tables) and drops the styles, so that the page keeps the look of your site. Links only accept web, e-mail and phone addresses.

Settings of a block

The settings of the selected block are in sections:

• Content: what the block is about (the picture and its alternative text, the address of a button or a video, the level of a heading, the questions of an accordion…).
• Layout: for containers, rows and columns (width, space between columns, alignment).

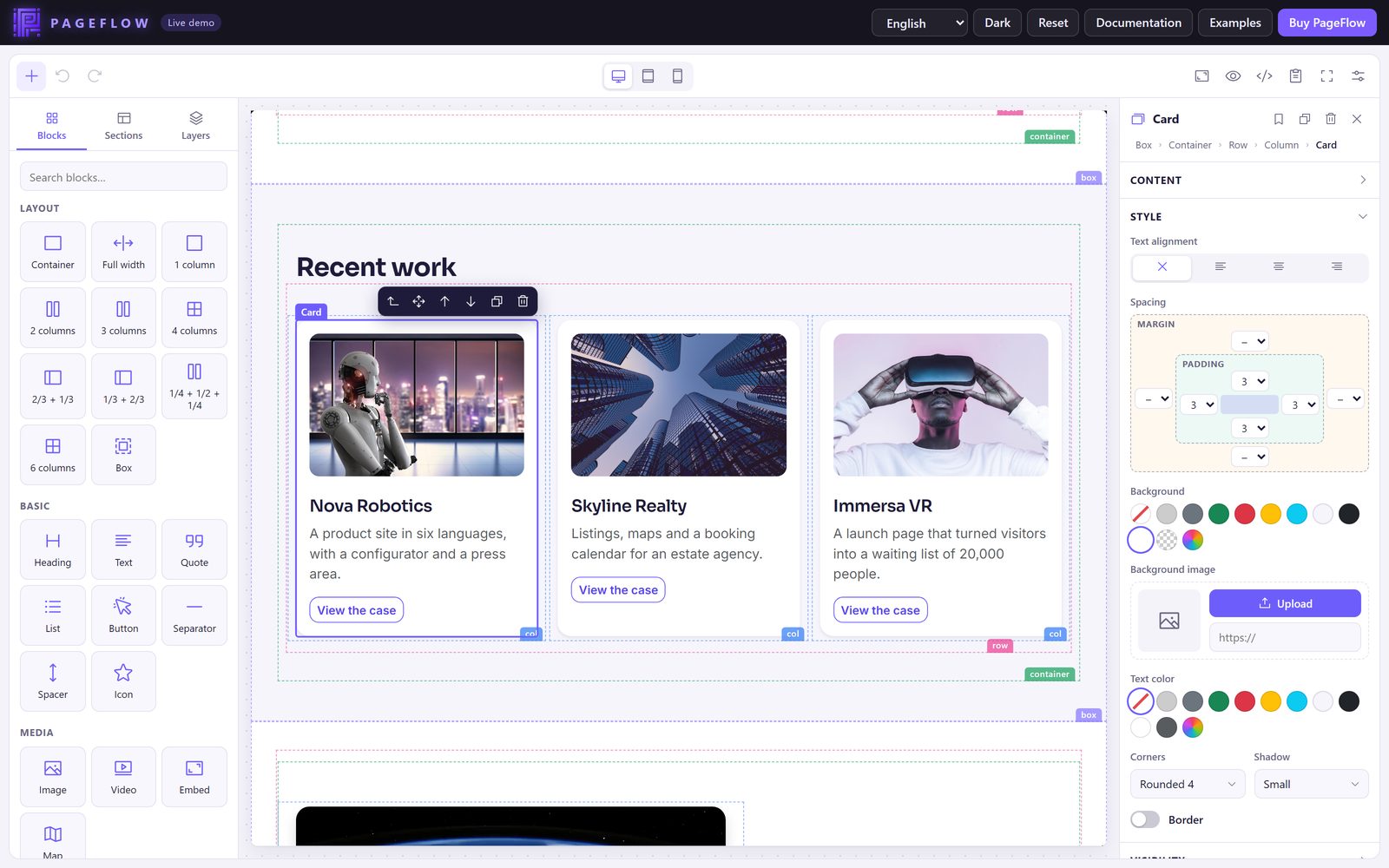

• Style: text alignment, margins and paddings, background color or picture, text color, corners, shadow and border, all with the classes of Bootstrap.
• Visibility: on which screen sizes the block shows.
• Advanced: an anchor (to link to the block), CSS classes and inline style.

Columns and screen sizes

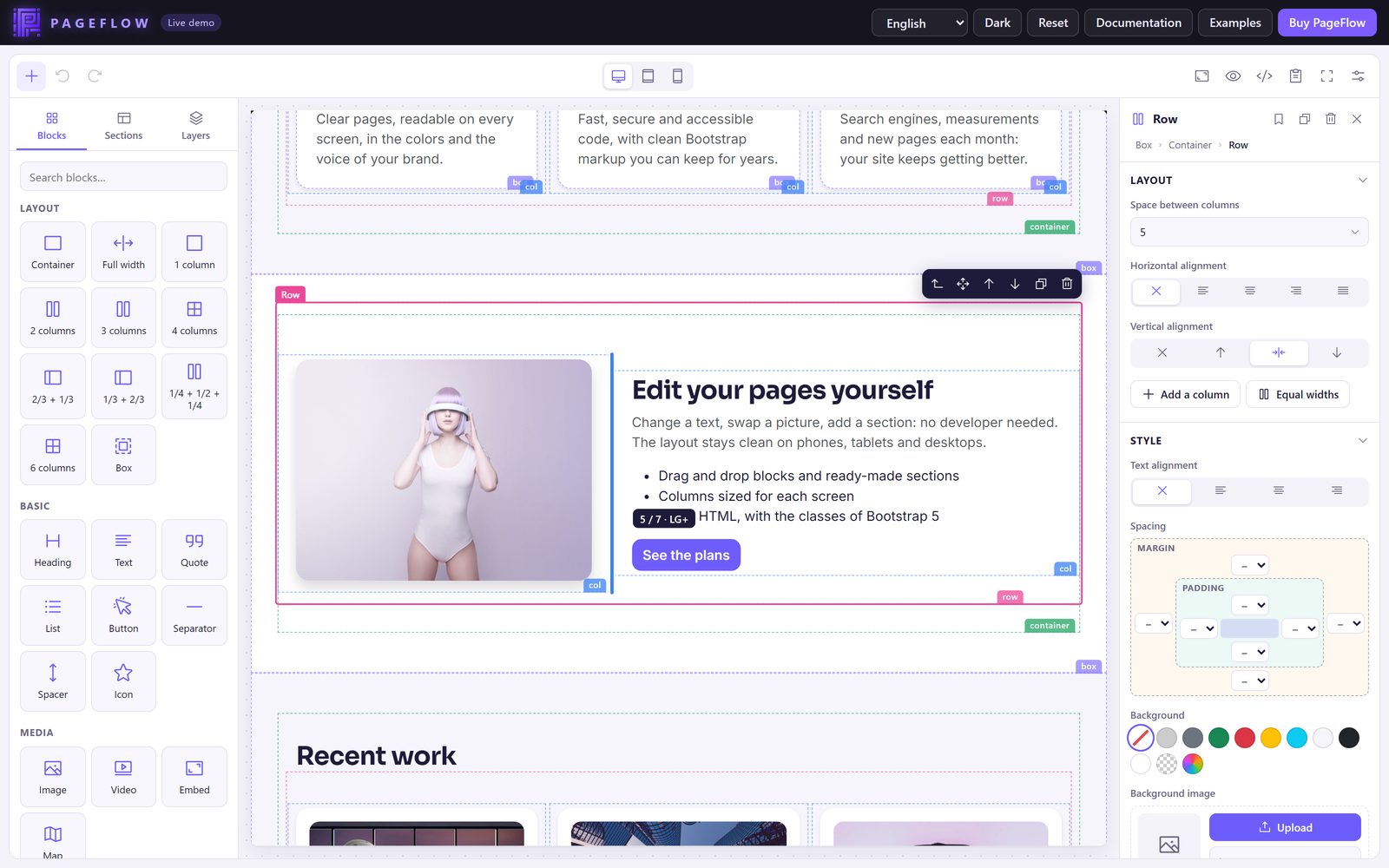

Drag the handle between two columns to share the twelve units of the row; a tip shows the widths. On the desktop preview, the change applies to every desktop (from Bootstrap's lg), on the tablet preview from md, on the phone preview to every size.

For full control, the Width by screen size setting of a column gives a width for each size of Bootstrap (XS, SM, MD, LG, XL, XXL). Phones come first: an empty size uses the width of the smaller one, shown in grey.

Pictures, videos and maps

• Image: upload or choose a picture, give it an alternative text, a link, a caption, a width, an alignment (with text around it), proportions (cropped to 16:9, 1:1…), corners and a shadow. Double-click a picture to replace it.
• Video: paste a YouTube or Vimeo link (YouTube videos use the privacy-enhanced address), or the address of an MP4 file.
• Map: type an address; choose the zoom and the height. No API key is needed.
• Embed: show another page (a form, a calendar…).

Saved blocks

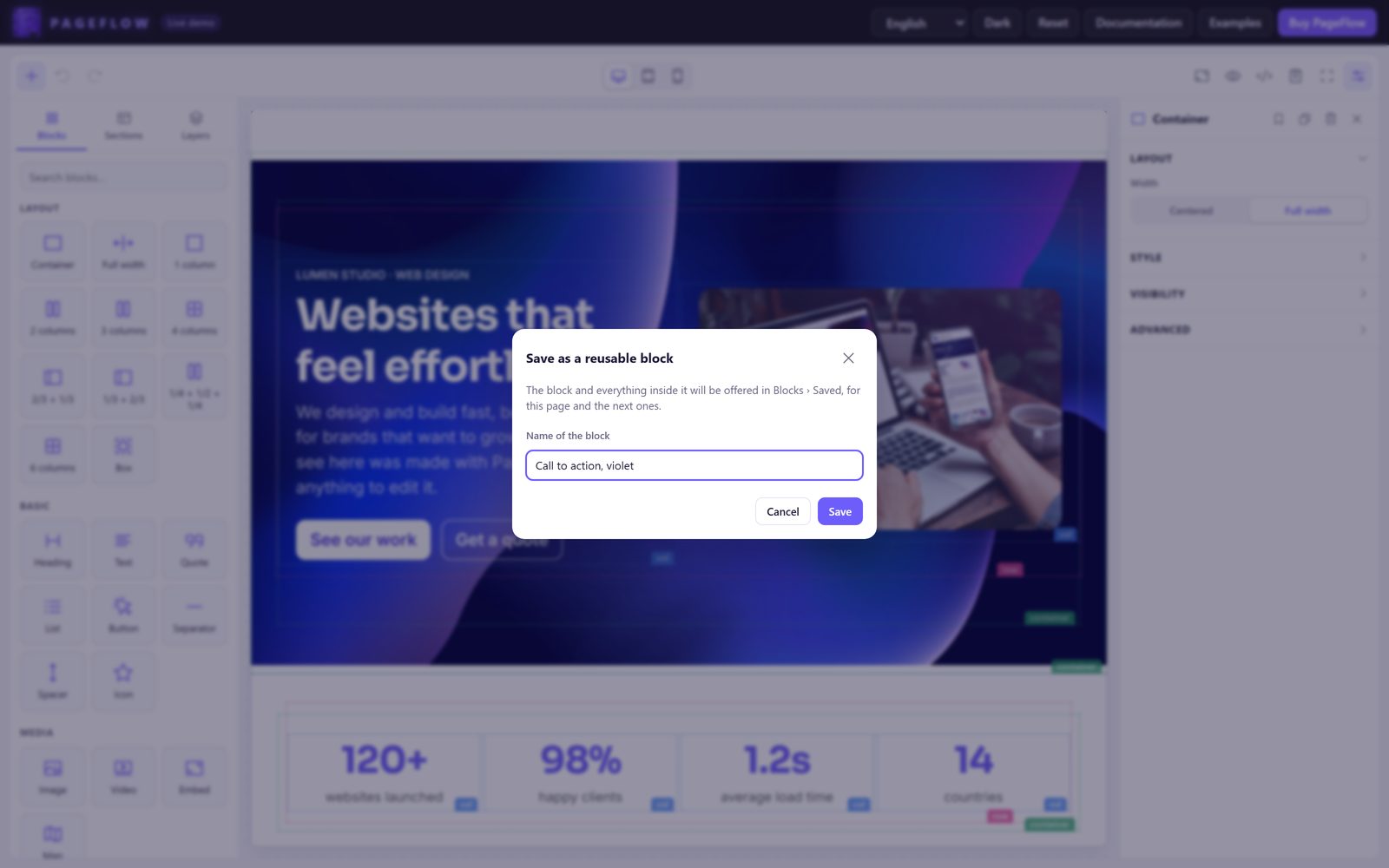

Select a block (a section, a call to action, a card…) and click the bookmark of its settings: give it a name, and find it in Blocks › Saved for this page and the next ones. Saved blocks are kept in the browser; a developer can keep them on the server with the storage option.

Code, preview and drafts

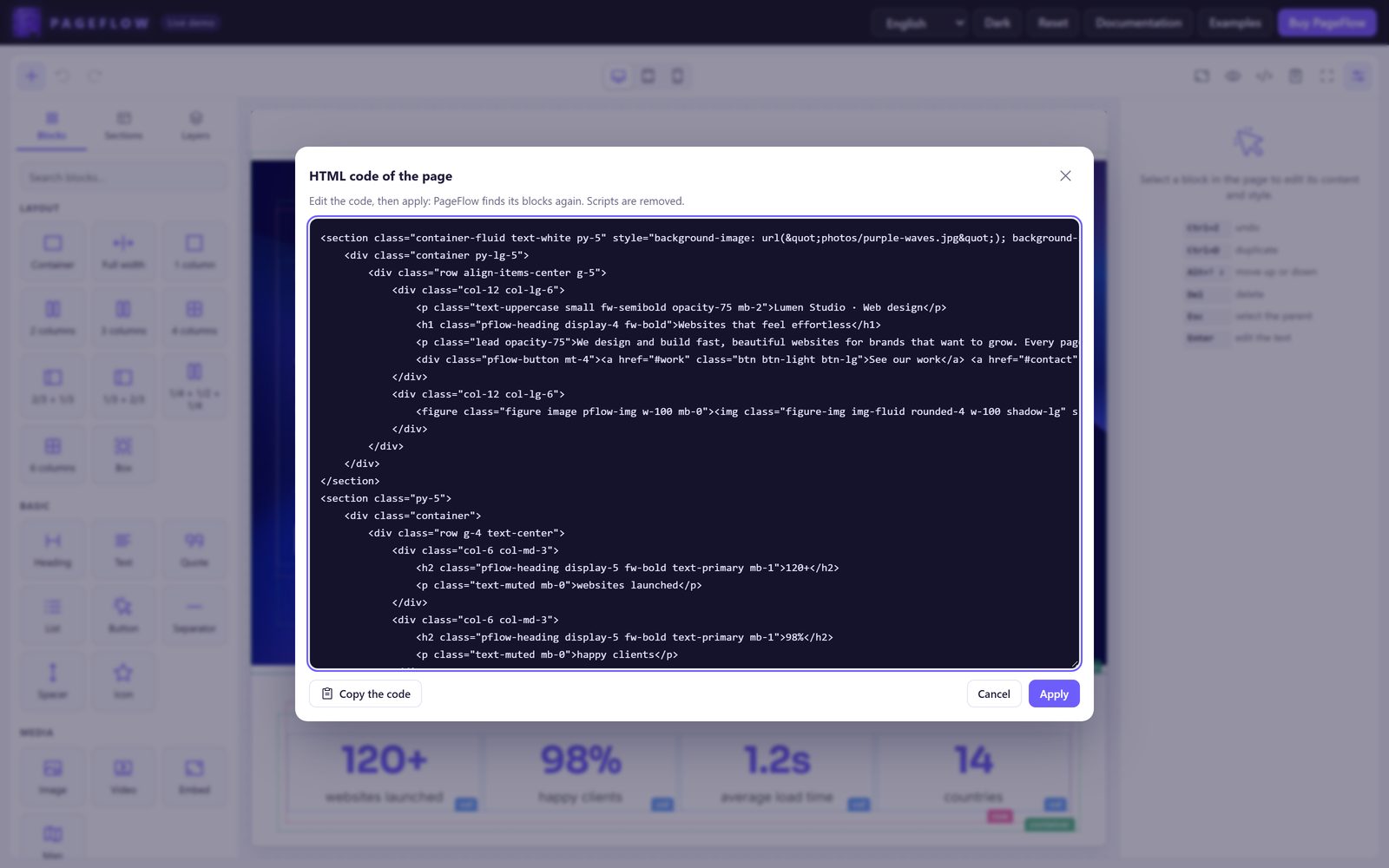

• Code shows the HTML of the page, ready to edit: apply it, and PageFlow finds its blocks again (scripts are removed). Copy puts it in the clipboard.
• Preview hides the panels and the outlines, and makes links work.

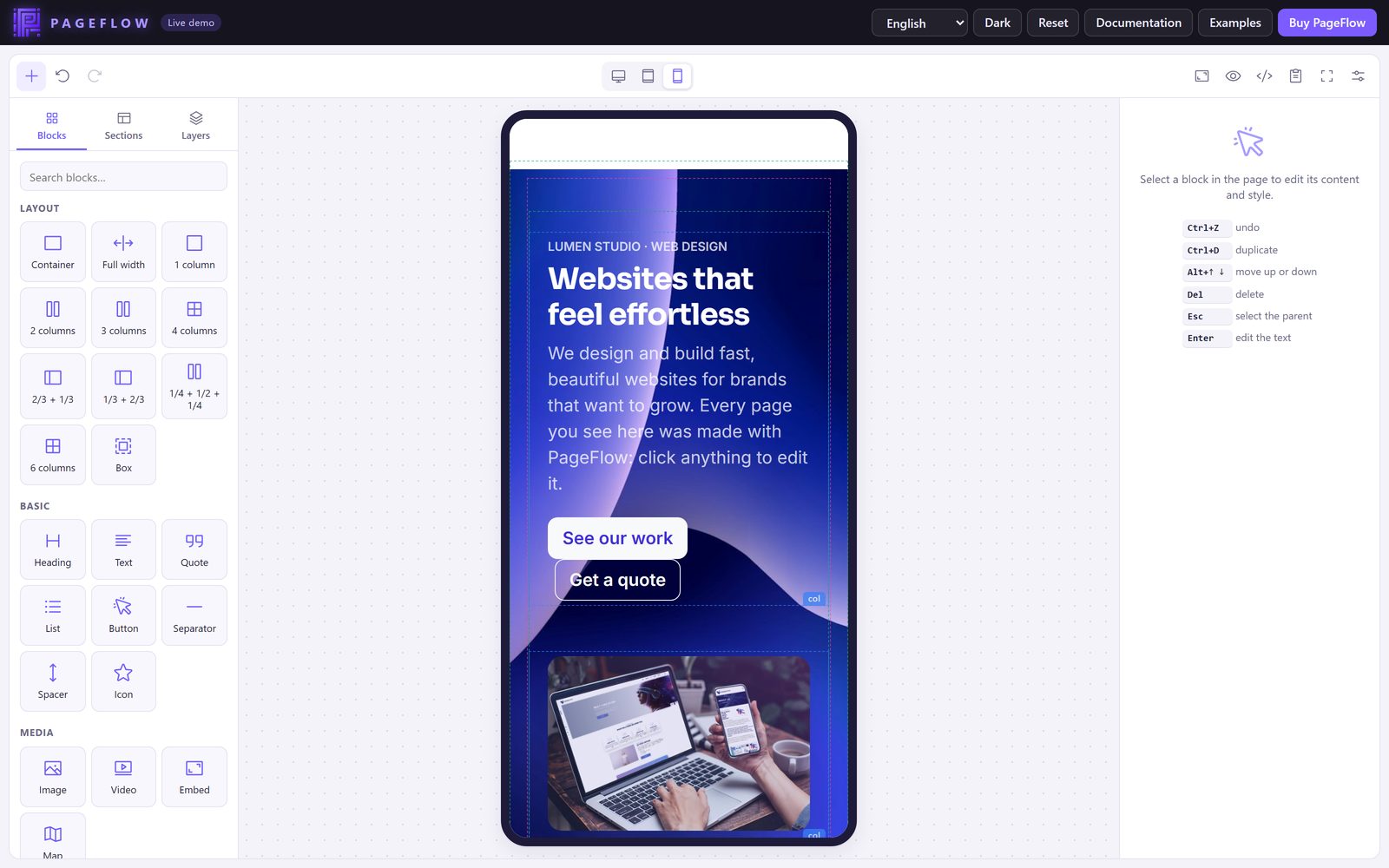

• Desktop, tablet and phone show the page at each size, with the real layout of Bootstrap.
• Drafts (when enabled): changes not saved yet are offered back after a reload.

Keyboard shortcuts

Options

PageFlow.create(target, options): target is a selector, an element or a jQuery object. Every option is optional.

Content

Interface

Canvas

Pictures

Text editor and security

Methods

And on PageFlow: create, version, registerBlock, unregisterBlock, getBlock, blocks(), addLocale, sanitize(html), safeUrl(url), sections, placeholder(width, height, hue), icons.

Events

editor.on('change', editor => save(editor.getHTML()));
editor.on('select', element => console.log(element && element.dataset.pf));

Each event is also dispatched on the target element as a DOM event: pageflow:change, pageflow:select…

The styles of your site

The canvas is a frame of your page, with its own styles: list the stylesheets of your site in canvasStyles, and the page looks in the editor as it will online, fonts and colors included. The interface of PageFlow keeps its own look, whatever the styles of the page around it.

The HTML uses the classes of Bootstrap 5: your theme can be any Bootstrap 5 theme, or your own CSS for those classes. The colors offered by the settings (primary, secondary…) are read from the canvas, so they show your theme's.

If the stylesheets cannot be loaded (a wrong address), PageFlow uses a minimal grid so that columns stay columns, and says so.

Custom blocks

A block is a definition: how to recognize it in HTML, how to create it, which parts are editable and which settings it has. Register it before creating the editor; it shows in the palette and is recognized in existing pages.

PageFlow.registerBlock({
    name: 'alert',
    label: 'Alert',                 // text, or a key of your translations
    icon: 'warning',                // one of Object.keys(PageFlow.icons)
    category: 'components',         // layout, basic, media, components, advanced
    priority: 70,                   // tried before the generic blocks at import
    match: el => el.classList.contains('alert'),
    create: ctx => ctx.h('div', { class: 'alert alert-info', role: 'alert' }, 'Your message'),
    prepare: el => el.setAttribute('data-pf-edit', 'inline'),   // editable on one line
    fields: [{
        type: 'select', label: 'Style',
        options: [{ value: 'alert-info', label: 'Info' }, { value: 'alert-warning', label: 'Warning' }],
        get: el => [...el.classList].find(c => /^alert-/.test(c)) || '',
        set: (el, value) => { el.classList.remove('alert-info', 'alert-warning'); el.classList.add(value); },
        pattern: /^alert-(info|warning)$/,   // classes not listed in "CSS classes"
    }],
});

See examples/custom-block.html.

Field types

A field has a type, a label, get(el) and set(el, value); optionally help, target(el) (the element it changes), when(el) (shown only when true) and pattern (the classes it manages).

Another text editor

PageFlow's own editor covers what pages need. To use another one (CKEditor, TinyMCE, Quill…) for the rich texts, give a function that starts it on an element of the canvas and returns how to read and stop it. Load the editor in the canvas with canvasScripts: the texts live in the canvas document.

PageFlow.create('#editor', {
    canvasScripts: ['/vendor/my-editor/my-editor.js'],
    textEditor: (element, { window, document, mode }) => {
        const instance = window.MyEditor.attach(element);   // the library of the canvas
        return {
            getHTML: () => instance.getContent(),             // read when editing ends
            destroy: () => instance.detach(),
        };
    },
});

The HTML returned is cleaned like everything else. Mind the licence of the editor you plug (CKEditor and TinyMCE are GPL or commercial).

Translations

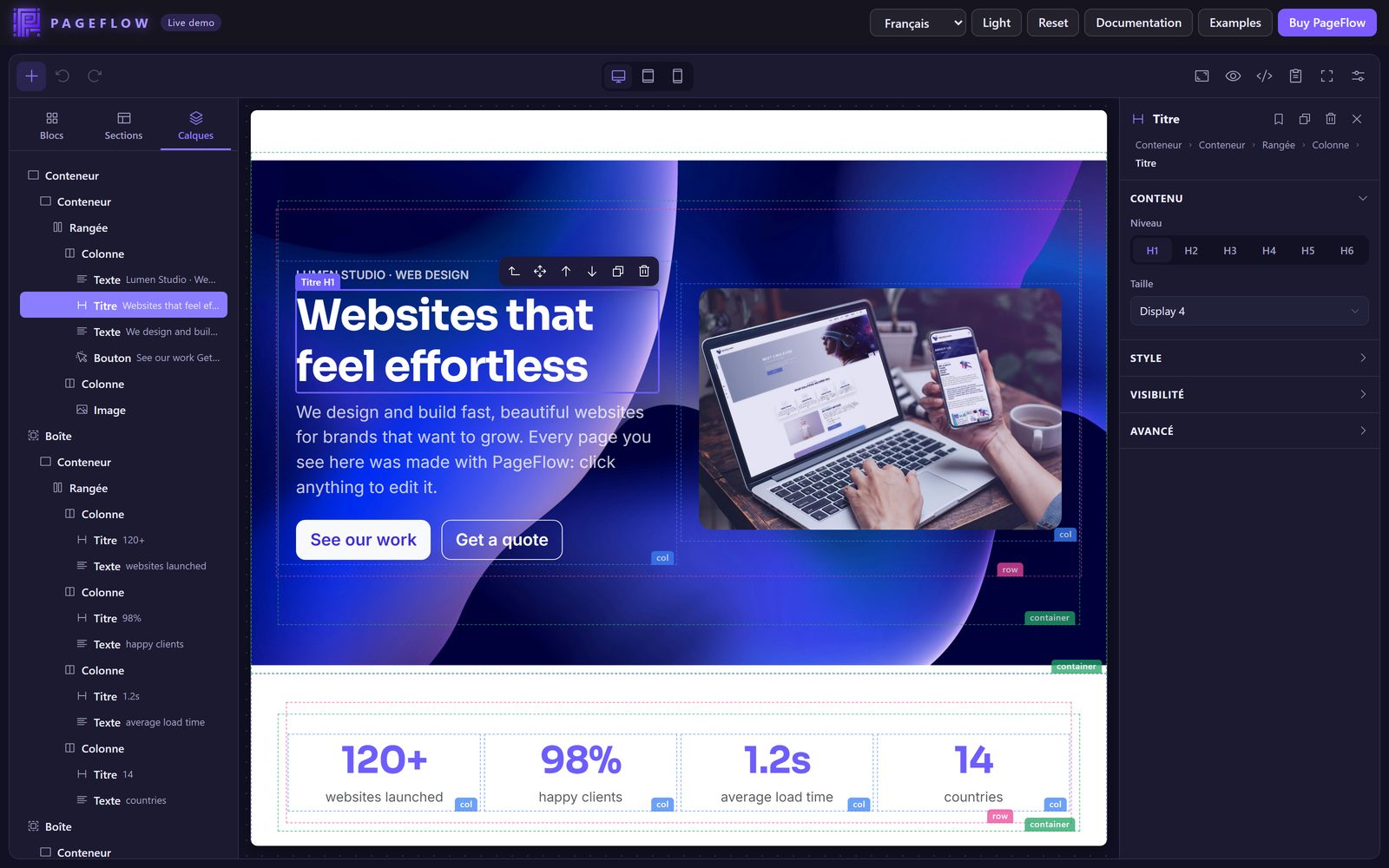

Choose a language with locale (en, fr, es, de, it, pt). Change any text with i18n, or add a language:

PageFlow.addLocale('nl', { 'tab.blocks': 'Blokken', 'action.undo': 'Ongedaan maken' });
PageFlow.create('#editor', { locale: 'nl' });   // missing texts stay in English

The keys are in src/i18n/en.js. The texts of the ready-made sections are translated too.

jQuery

jQuery is not needed. When it is on the page (before PageFlow), the syntax of version 1 works:

$('.pageflow').pageflow({ exportToInput: true });   // rel="#field" names the field
$('.pageflow').pageflow('getHTML');                  // any method, by name
const editor = $('.pageflow').pageflow('instance');

The events pandao:sync.pageflow (writes the field) and pandao:restore.pageflow (reloads it) of version 1 still work.

React, Vue and others

Create the editor once its element is in the page, and destroy it when the component goes away:

// React
useEffect(() => {
    const editor = PageFlow.create(ref.current, { html: props.html, onChange: e => props.onChange(e.getHTML()) });
    return () => editor.destroy();
}, []);

// Vue
onMounted(() => { editor = PageFlow.create(el.value, { html: props.html }); });
onBeforeUnmount(() => editor.destroy());

The HTML it writes

PageFlow writes indented HTML with the classes of Bootstrap 5, for example:

<div class="container py-5">
    <div class="row g-4 align-items-center">
        <div class="col-12 col-md-6">
            <h2 class="pflow-heading">Edit your pages yourself</h2>
            <p class="text-muted">Change a text, swap a picture…</p>
        </div>
        <div class="col-12 col-md-6">
            <figure class="figure image pflow-img"><img class="figure-img img-fluid rounded" src="/media/visor.webp" alt="…"></figure>
        </div>
    </div>
</div>

• A few pflow-* classes (pflow-heading, pflow-img, pflow-button, pflow-card…) let PageFlow recognize its blocks when the page is edited again. They have no style; getHTML({ markers: false }) removes them.
• HTML that PageFlow does not know stays as it is, in an HTML block.
• Nothing of the editor is ever exported: no data-* attribute of PageFlow, no editing state.
• Accordions use <details>: they work without any script.

Security

• Everything that enters the canvas (the initial page, the code view, pasted content, HTML blocks, drafts, saved blocks) is cleaned: no <script>, no event attribute (onclick…), no javascript: address, no <object> or srcdoc.
• Links, pictures and videos only accept web, e-mail and phone addresses; target="_blank" links get rel="noopener".
• The PHP upload handler accepts pictures only, writes them again (nothing hidden in a file survives), behind a CSRF token, a same-origin check and a rate limit.
• PageFlow works under a strict Content Security Policy: give your nonce (used for the styles it adds, in the page and in the canvas), or injectStyles: false and dist/pageflow.css. The canvas is an about:srcdoc frame that inherits your policy: the stylesheets of canvasStyles must be allowed by its style-src.

FAQ

Do I need Bootstrap on my site?

The CSS of Bootstrap 5, yes: the pages use its classes. Its JavaScript is not needed.

Can I use my own CSS framework?

The blocks write Bootstrap classes, which any CSS can style. For other markup, write custom blocks.

Why can't I upload pictures?

No upload address is set: see Pictures and uploads. The image fields still take the address of a picture.

The page looks different in the editor and online.

Give canvasStyles the same stylesheets as your site, and bodyClass / rootClass if your theme styles the content through a wrapper.

Columns are stacked in the editor.

The stylesheets of the canvas did not load (PageFlow says so): check the addresses in canvasStyles.

Can I limit what people can do?

Yes: blocks chooses the palette, sections: false hides the sections, toolbar hides buttons.

Does it work on a phone or a tablet?

Yes: the panels become drawers, a tap adds a block, and blocks move with their handle or the up and down arrows.

Can several editors be on one page?

Yes, each with its own options.

Support

We answer through the Support tab of the page of PageFlow on CodeCanyon. Item support comes with your purchase for 6 months, and can be extended to 12 months. It covers questions about the features of the product, the fixing of bugs, and help with the third-party assets it includes, as described by the item support policy of Envato. Installation services and customisation are not included.

To get a quick answer, describe what you did, what you expected and what happened, give the address of the page, the browser, and any message of the browser's console (F12). Never send a password in a message.

Author: items.pandao.eu · Live demo: pageflow.pandao.eu

Credits & licences

PageFlow is made by Pandao and sold under the licences of Envato Market (Regular or Extended). It includes the following resources, each under its own licence.

The photos of the online demo and of the screenshots of this guide are for preview only and are not included.

Changelog

Version 2.0.0 October 2026

A complete rewrite, without dependency.

• Plain JavaScript: no jQuery, Bootstrap JavaScript or CKEditor needed; the jQuery syntax of 1.x still works.
• Canvas with the styles of your site, and desktop, tablet and phone previews with the real layout.
• New blocks: box, quote, list, table, spacer, icon, map, embed, accordion, HTML; 13 ready-made sections.
• Inspector: spacing, colors, background pictures, corners, shadows, borders, visibility per screen size, column widths per screen size, anchors and classes.
• Columns resized with the mouse; one drop marker computed from the pointer.
• PageFlow's own text editor (paragraph styles, lists, links, alignment, tables, clean paste).
• Undo and redo, copy and paste between pages, saved blocks, layers, drafts, code view, keyboard shortcuts.
• Pictures: upload field, drop from the desktop, paste; secure PHP upload handler; no more base64 by default.
• Six languages; light and dark themes; layouts for wide, medium and small screens.
• Security: cleaning of everything that enters the page; removing a block no longer deletes its file on the server; the upload handlers of 1.x must be removed.
• Pages written by 1.x are imported unchanged.

Version 1.0.0 October 2024

First version: a jQuery page builder with CKEditor 5.
